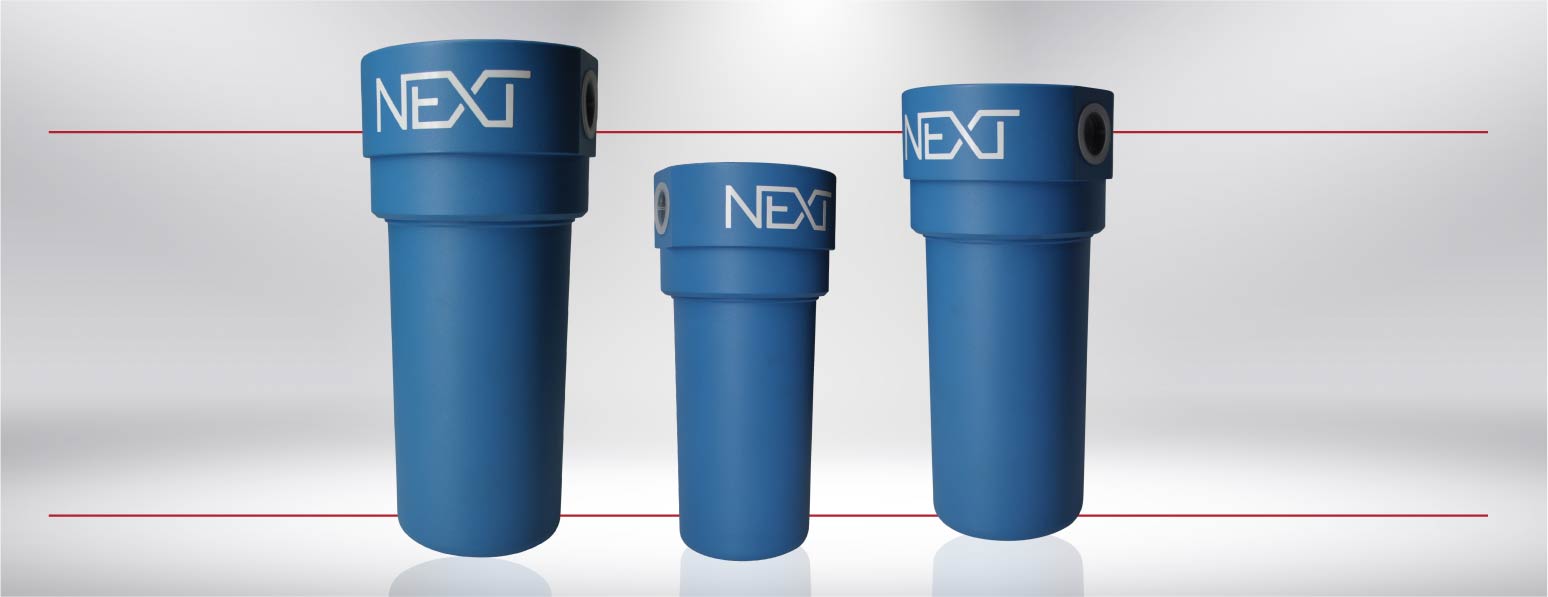

NFMP-A Series (30-250 CFM)
Mid Pressure Filtration
The Next NMPF mid pressure range filter series is tested in accordance with ISO 8573-1 standards. The NMPF-A filters have (2) ranges of efficiencies at 580 psig. for removing contaminants as small as 0.01 microns, with connections from– ½” to 1” npt sizes. A stainless manual valve drain is standard for optimal and reliable removal of liquid contaminants. It’s 2-part permeant pressure cast molded aluminum housing that goes through the process of chromo phosphate in addition to being externally powder coated. Low pressure drop is achieved through optimal flow path design. The high efficiency bowl and non-turbulent lower filter zone assure that no condensate gets re-entrained in the air stream. The NFMPs’ seal cannot be opened while the filter is under pressure, offering additional efficiency. The stop lock feature design allows for easy disassembly and element changeout but also prevents over tightening of the filter body.
NEXT offers filtration products in an application range from general purpose air to the most stringent food and pharmaceutical applications. Next’s NFMP filters are available from 35 to 250 cfm, @ 580 psig, with design temperatures of 35 °F (2°C) to 176 °F (80°C)
- Engineered for energy efficiency – helps reduce operating costs
- Durable Housing construction for corrosion resistance
- Broad filtration from general purpose to highly stringent applications
- Optimized air flow design to help increase efficiency and reduce pressure loss
- Built for reliable and easy maintenance
NFMP-A Series Features
- Unique range of up to 580 psig. die cast aluminum filters for mid pressure applications.
- Choose from 2 different element grades 1 um, 0.01 um.
- Manufactured from machined and die cast aluminum.
- Optimum corrosion protection provided by a chromo-phosphate coating.
- Innovative tie-rod element design with O-ring seal to ensure optimum sealing and mechanical strength.
- Connection Sizes: 1/2″ to 1′ NPT pipe sizes.
- Manual stainless Valve Drain
- Manufactured in an ISO 9001 approved facility and tested in accordance with ISO 8573-1:210
- Durable element construction
- Efficient drain layer ensures continued performance after optimal element change periods
Max Operating Pressure
- 580 psig.
- 40 bar.
FLOW RATES
- 35 to 247 scfm
CONNECTIONS
- 1/2” to 1” npt.
Min Operating Temp Range
- 35° F
- 2° C
Max Operating Temp Range
- 176° F
- 100° C
Material
- Chromo Phosphate Aluminum
ISO air quality class (solids, water, oil)
- ISO Class 8573-1
NFMP-A Series Range
Correction Factors
For maximum flow rate, multiply model flow rate by the corresponding working pressure correction factor.
Particulate: F and FR Elements
High Efficiency filters remove particles to 1 micron, including coalesced liquid water and lubricants
- Maximum Remaining aerosol content after filtration 0.5 ppm at 70°F (21°C)
- Media Type
- Pleated
- Efficiency Performance:
- (F) 1 micron & 0.5 ppm carryover
- (FR) Reverse 1 micron & 0.5ppm carryover
- Flow Direction
- (F) In-to-Out
- (FR) Out-to-In
- Dry Pressure Drop (psig)
- (F) 0.6
- (FR) 0.35
- Wet Pressure Drop
- (F) 1.2
- (FR) 0.6
- ISO Class
- Class 2: ISO8573-1
- Type of Filtration
- Particulate
High Efficiency Coalescing: H and HR Elements
- Maximum filtration to remove particulate down to 0.01 micron, including water and oil aerosols. Maximum remaining oil aerosol content of 0.01 ppm at 70°F (21°C), when used with Next particulate filters.
- Media Type
- Pleated
- Efficiency Performance:
- (H)1 micron & 0.01 ppm carryover
- (HR) Reverse 0.01 micron & 0.5ppm carryover
- Flow Direction
- (H) In-to-Out
- (HR) Out-to-In
- Dry Pressure Drop (psig)
- (H) 1.2
- (HR) 4.5
- Wet Pressure Drop (psig)
- (H) 2.3
- (HR) 0.7
- ISO Class
- Class 1: ISO8573-1
- Type of Filtration
- Coalescing
Filter Media Designed for Compressed Air
High quality compressed air filtration starts with selecting the correct filter media. Next uses superior-quality filter media with a new hybrid technology. Our elements stop the perpetual discussion about the use of filter media with or without binders because they are layered with body types, tailored to the filtration task. This neutralizes the inherent disadvantages and, as a result, retains the advantages of both types. The fine filter media is protected on both sides using a supporting fabric to increase both the stability and reliability.
Pleated Filter Elements
Pleated filter elements provide significantly greater filtration area than non-pleated. The higher filter area provides more void space for holding contaminants which reduces the differential pressure caused by retention of solid particles. The service life of the filter element increases proportionally which results in operating and maintenance cost savings.
Incorporated Drainage Media
The filter and drainage media are supported between two stainless steel supporting cylinders, eliminating any potential detachment of the filter media. The drainage media is located inside the filter element, eliminating potential handling damage. The stainless-steel cylinders have big, diamond-shaped openings for optimum flow conditions. Compared to punch-hole versions, their contribution to differential pressure is much lower and they are much more environmentally friendly because they are made from expanded sheet metal, i.e. without metal scrap.
Two-stage dry type Separation
During dry-type separation without-to-inside flow through the filter elements, the drainage media functions as a pre-filter stage, preventing coarse contaminants from entering the fine filter media. As a result, the differential pressure caused by contaminants is reduced and the service life of the filter is extended. As an additional advantage, the filter elements can also be used for wet type filtration.
NFMP-A Optional Features
The Next condensate drain series, drains without the loss of compressed air and guarantees a secure and economical drainage of condensate for any application.
The sizing of the condensate drains matches perfectly the volume flows and guarantees secure drainage even with higher condensate volumes.
Timer Condensate Drain
NTD-HP (725 + psig.)
